Toote kirjeldus:

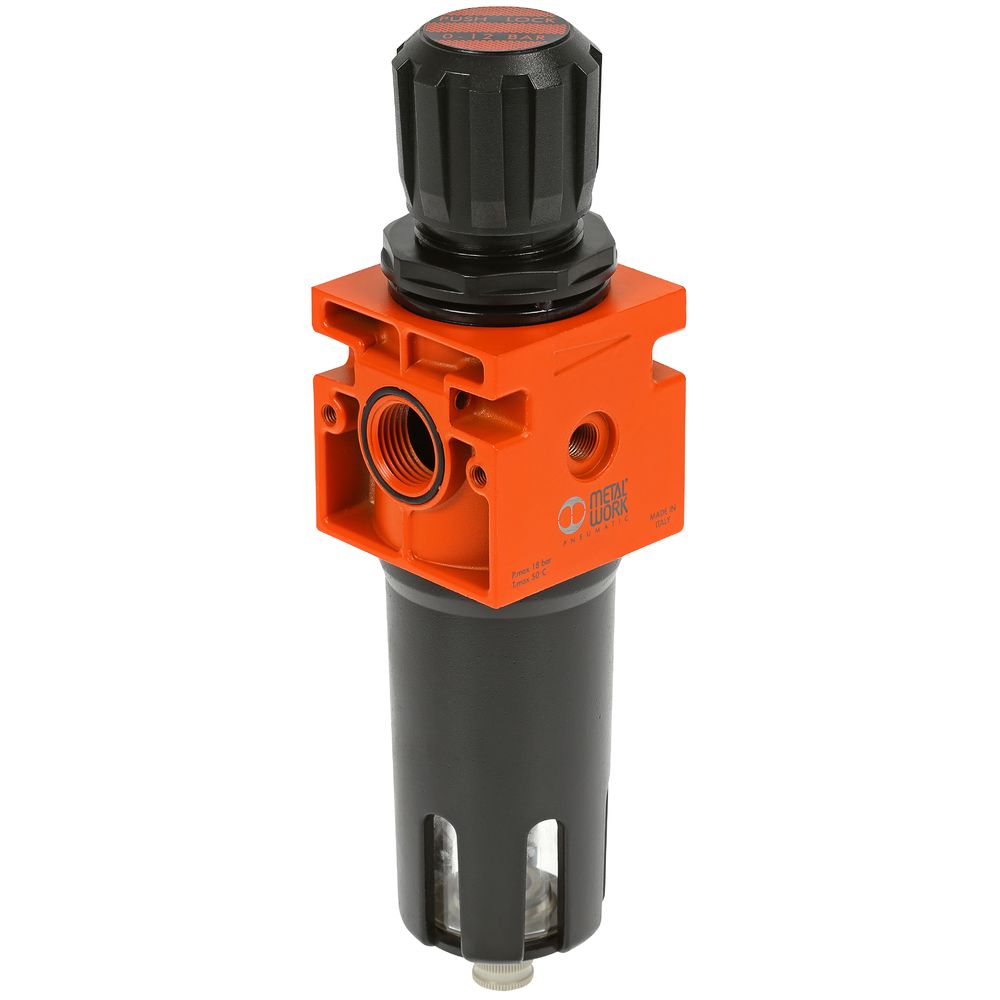

– New Deal filter regulator
– combines in a single unit the functions of filtration, condensate separation and pressure regulation
– RMSA: drain with manual condensate discharge and automatic discharge at zero pressure
– highly reliable, piston-operated
– standard overpressure blow-off valve
– thread G 1/2″
– gauge port G 1/8″
– setting range 0 – 12 bar
– degree of filtration 4 micron
– max. operating pressure 18 bar
– flow rate at 6,3 bar (pressure drop 0,5 bar) 1000 Nl/min
– flow rate 6,3 bar (pressure drop 1 bar) 2500 Nl/min
– max. operating temperature +50 °C
– tank capacity 45 cm³
– fluid: compressed air
– wall fixing screws M4 x 55
– mounting position vertical
– weight 1,0 kg
Dimensions (mm):
– A 60
– B 245
– C 60
– D 60
– E 52
– F 38 x 2
– G 14
– I 150
– L M4
– M 185
– N (pressure gauge port) 1/8″
– P 295
